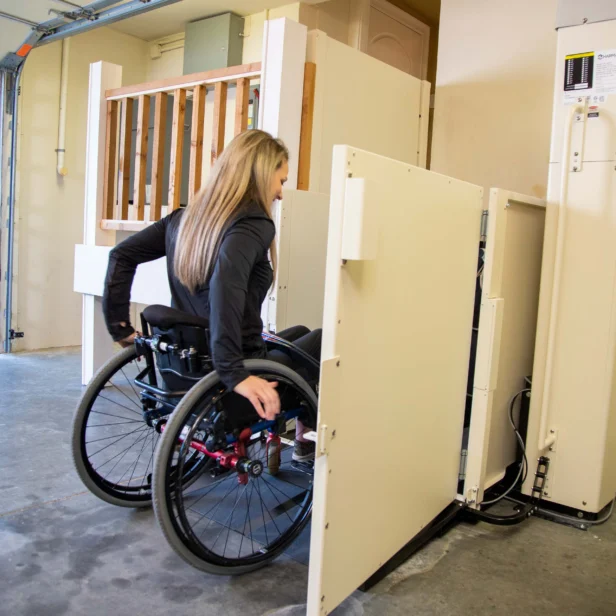

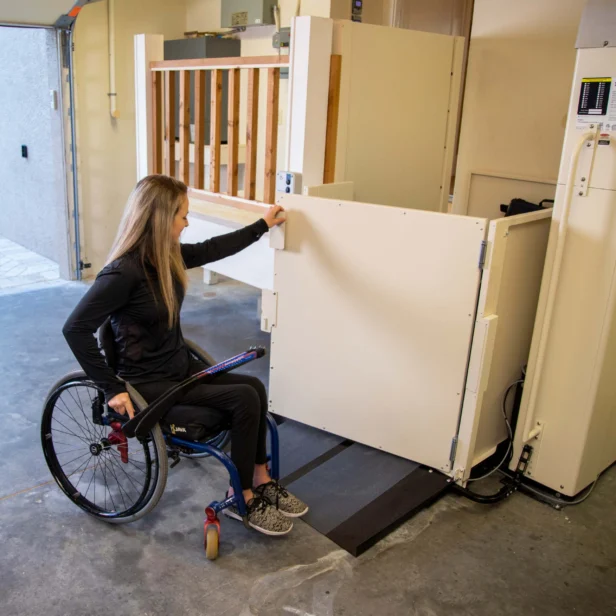

Harmar Highlander II VPL

Our Expert Technicians Offer Professional Installation

The Harmar Highlander II Vertical Platform Lift is suitable for commercial and residential settings. With a variety of different platform sizes and lifting heights to choose from, this lift can be customized to suit your accessibility needs. Through the 4-LED indicators in the top cap, the Guardian System and its advanced diagnostics will minimize equipment down time and the cost of unnecessary service calls

Check out our brochures:

Highlander II Vertical Platform Lift

Product Features

  • Weight capacity: 750 lbs.
  • 4” x 5” constant pressure paddle control (the blue button with white up/down arrows)
  • Powder coat with stainless steel hardware for outdoor use
  • Warranty: Harmar 3-Year on Parts
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty
  • Safety Features:
    • Safety pan under the platform
    • 4-LED indicators in the top cap
    • Emergency stop button in the platform
    • Overspeed brake
    • Overload protection
    • Interlocks for doors/gates
    • Manual lowering tool

Technical Specifications

  • Weight capacity: 750 lbs.
  • Drive: ACME screw drive and 90V 2/3 HP fully sealed DC gear motor
  • Speed: 10.4 FPM
  • Platform Sizes:
    • VPL 400-VPL600 - 36” x 48” clear platform
    • VPL800-VPL1400 - 36” x 54” clear platform
  • Lifting Height:
    • VPL400 – up to 53”
    • VPL600 – up to 77”
    • VPL800 – up to 101”
    • VPL1000 – up to 125”
    • VPL1200 – up to 149”
    • VPL1400 – up to 171”
  • Power: 115V AC and 15 AMP circuit breaker
  • Certified: ETL listed, CSA B44.1/ASME A18.1, rated commercial and residential

Product Options

  • Battery backup UPS system
  • 36” or 42” platform gates with EMI interlock
  • Grab bar in the platform
  • Fixed or auto-fold ramp
  • Fire-rated doors
  • Wired or wireless call/send controls
  • Lighted E-Stop with alarm
  • Keylock in the platform
  • 3-stop with 3-button control panel
