Savaria V-1504

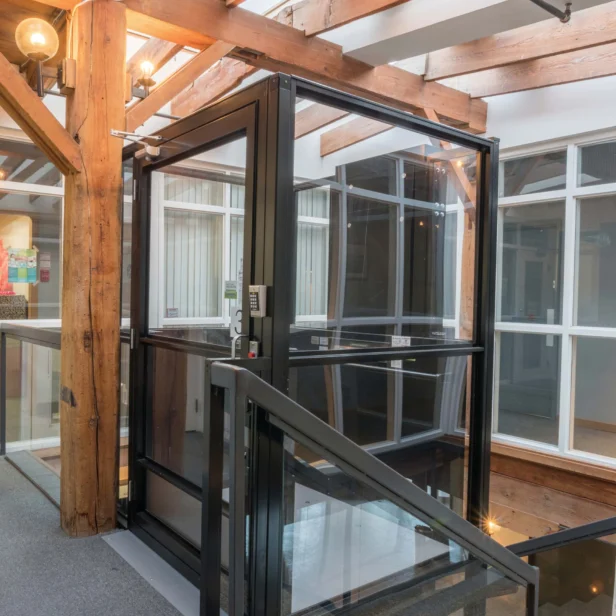

Savaria V-1504 vertical platform lift.

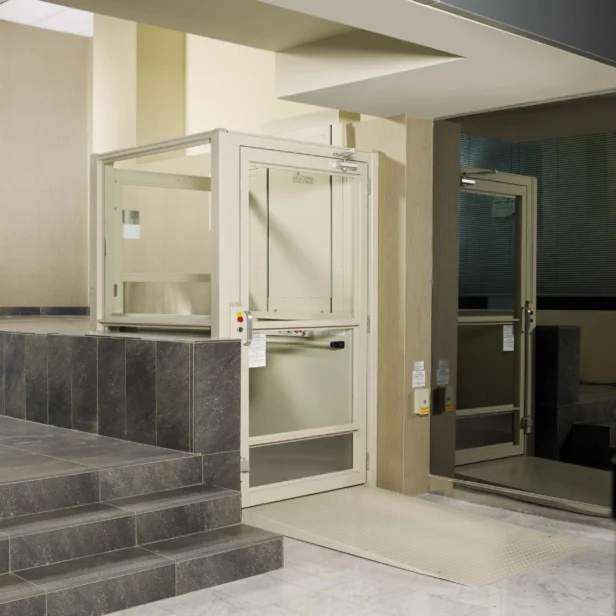

Savaria V-1504 vertical platform lift enclosed.

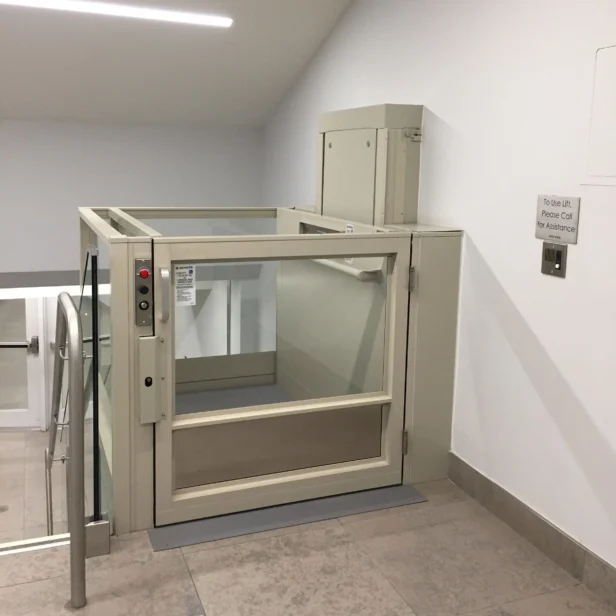

Savaria V-1504 vertical platform lift in a lobby.

Vertical Platform Lift Backed by Our One-Year Limited Service Warranty

Experience Accessibility Confidence with the Savaria V-1504 Vertical Platform Lift, supported by our One-Year Limited Service Warranty. Engineered for versatility, this lift fits easily into diverse spaces.

Featuring a machine-roomless design, its smooth hydraulic 2:1 chain-drive system resides within the lift tower. Whether mounted to a wall or installed through a hoistway, the Savaria V-1504 effortlessly meets your vertical platform lift needs. Tailored to both residential and commercial settings. You can be assured of our dedication to quality and service excellence.

Get a Free Consultation

  • Continuous pressure switches on platform wall for easy operation
  • Underpan sensors for obstruction detection
  • Keyed car buttons and call stations to prevent the operation from children or other unwanted users
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty
  • Non-skid platform for wheelchair or powerchair balance
  • Handrail for ensured balance during operation
  • Emergency stop button on the platform to ensure safety

Standard Model (V-1504 STD)

Perfect for essential commercial and home applications, adaptable for indoor or outdoor use, and customizable with local installer enclosure.

Aluminum/Acrylic Model (V-1504 ALPE)

Designed specifically for outdoor environments, featuring robust aluminum and acrylic components, a corrosion-resistant steel dome, active ventilation, and motorized gates for optimal user comfort and convenience.

Savaria V-1504
Weight Capacity750 lbs (340 kg)
Nominal Speed20 fph (0.1 m/s)
Power Supply110V, 20 AMP, single phase, 60 Hz
Maximum Travel Distance23’ (7 m)
Maximum Number of Stops4

  • Battery back-up system for up/down operation – Allows lift to continue operation in the event of a power outage or failure
  • Folding seat – Allows for optional seating while using the lift
  • Platform sizes – Platforms can be configured in four different sizes for optimum customization:
    • 36” x 48” (914 mm x 1219 mm)
    • 36” x 54” (914 mm x 1371 mm)
    • 36” x 60” (914 mm x 1524 mm)
    • Custom sizes up to 42” x 60” (1067 mm x 1524 mm)
  • Recessed or free-standing call stations – Call station can be recessed into wall or free-standing for optimum customization
  • Telephone – Allows for communication to and from the platform. Comes in ADA Compliance (in the US)-hand free option
  • Upper/lower landing door – Encloses upper or lower landing when the platform is not being boarded or exited for added safety. Door can be:
    • Wooden
    • Fire-rated
    • Automatically operated
    • Customized with glass or acrylic inserts
  • Wall-mounted – Allows the lift to be mounted to the wall for seamless architectural integration
  • Frame-mounted – Allows the lift to be mounted to a frame for minimal architectural modifications
  • Platform gate – Encloses platform during travel for added safety
  • Car access – Car can be accessed in three different ways for optimum convenience:
    • Enter/exit same side
    • Straight-through enter/exit
    • 90-degree exit
  • Finish – Available in many different finish options and colors. Check out the “Finish options” downloadable attachment on this page for more information.
  • Top landing gate – Encloses top landing when the platform is not being boarded or exited for added safety
  • Side guards height – Side guards can be configured in two different heights for optimum customization:
    • 42.125” (1070 mm)
    • 80” (2032 mm)
  • 2.4” (60 mm) buttons – Installs 2.4” (60 mm) buttons for added customization
  • Architect Resources

Savaria V-1504 Brochure

Frequently Asked Questions

Yes, many platform lifts are specifically designed for outdoor use. These lifts are built to withstand various weather conditions and provide reliable accessibility to outdoor areas like porches, decks, and garages. Ensure that the lift you choose is rated for outdoor use.

The cost of installing a platform lift can vary based on factors such as the lift type, installation complexity, and any customization needed. Basic models are more affordable, while higher-end lifts with additional features can be more expensive. It’s best to get a quote from your local 101 Mobility to understand the total cost.

Yes, many platform lifts offer customization options to meet your specific needs and preferences. You can choose from various platform sizes, weight capacities, and features like automatic doors, remote controls, and different finishes to match your home’s decor.

Vertical Platform Lifts (VPL): Ideal for customers who need to travel between floors where stairs are not an option or for outdoor settings where height differences exist without steps ( such as from a garage to a main floor, or from ground level to a porch or deck).

Inclined Platform Lifts (IPL): Best suited for buildings with existing staircases, especially where space for a VPL is limited or where the staircase needs to remain usable by others when the lift is not in use.
