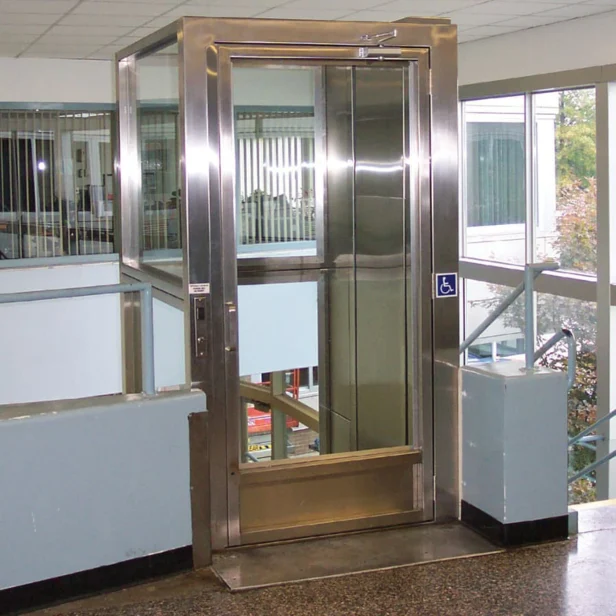

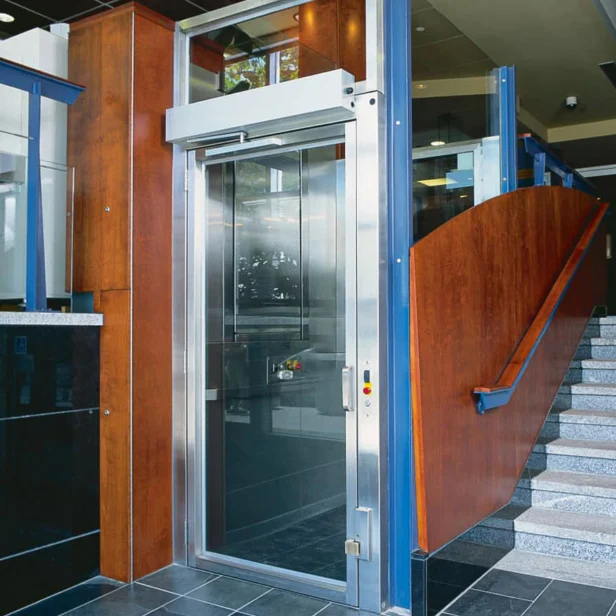

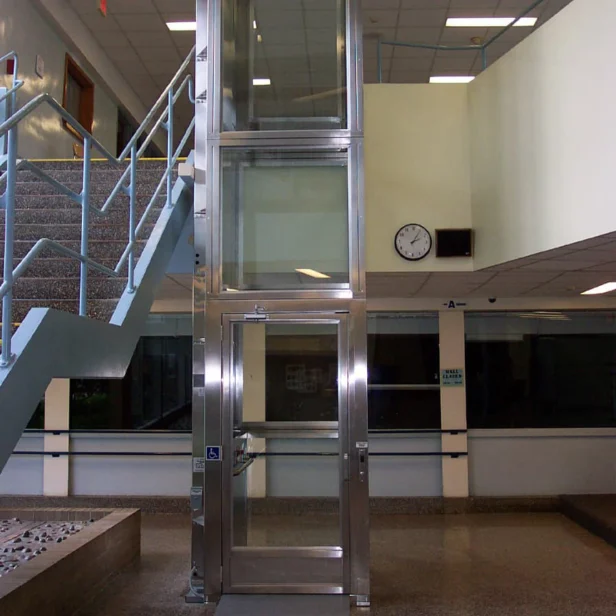

V-1504 Lux Vertical Platform Lift
Safe and Stylish Vertical Accessibility Solutions
The V-1504 Lux Vertical Platform Lift combines patient safety with sleek design, making it a stylish addition to any commercial lobby. This handling equipment features a sturdy 304 stainless steel finish and tempered glass inserts, ensuring safe patient handling and mobility. With customizable configurations, this lift can be tailored to meet specific needs, traveling up to 10 feet with various entrance and exit options. Enhance its functionality with automatic features like swing door operators and top landing doors, prioritizing patient safety and accessibility.
| V-1504 Lux Vertical Platform Lift | |
|---|---|
| Applications | Residential, commercial, indoors, outdoors |
| Standard Capacity | 750 lb (340 kg) |
| Maximum travel distance | 23′ (7 m), subject to local code, in some areas 12′ to 14′ (3.65 to 4.26 m) |
| Nominal Speed | 20 ft/min (0.1 m/s) |
| Drive/Motor | 2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor |
| Minimum pit | 3″ (76.2 mm) |
| Power Supply | 120 VAC, 20 amp, single phase, 60 Hz |
Frequently Asked Questions
Yes, many platform lifts are specifically designed for outdoor use. These lifts are built to withstand various weather conditions and provide reliable accessibility to outdoor areas like porches, decks, and garages. Ensure that the lift you choose is rated for outdoor use.
The cost of installing a platform lift can vary based on factors such as the lift type, installation complexity, and any customization needed. Basic models are more affordable, while higher-end lifts with additional features can be more expensive. It’s best to get a quote from your local 101 Mobility to understand the total cost.
Yes, many platform lifts offer customization options to meet your specific needs and preferences. You can choose from various platform sizes, weight capacities, and features like automatic doors, remote controls, and different finishes to match your home’s decor.
Vertical Platform Lifts (VPL): Ideal for customers who need to travel between floors where stairs are not an option or for outdoor settings where height differences exist without steps ( such as from a garage to a main floor, or from ground level to a porch or deck).
Inclined Platform Lifts (IPL): Best suited for buildings with existing staircases, especially where space for a VPL is limited or where the staircase needs to remain usable by others when the lift is not in use.
