Savaria Prolift Vertical Platform Lift

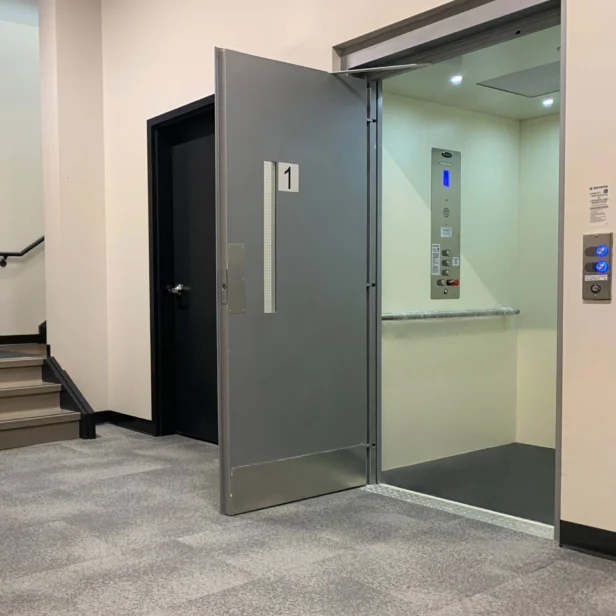

Savaria Prolift.

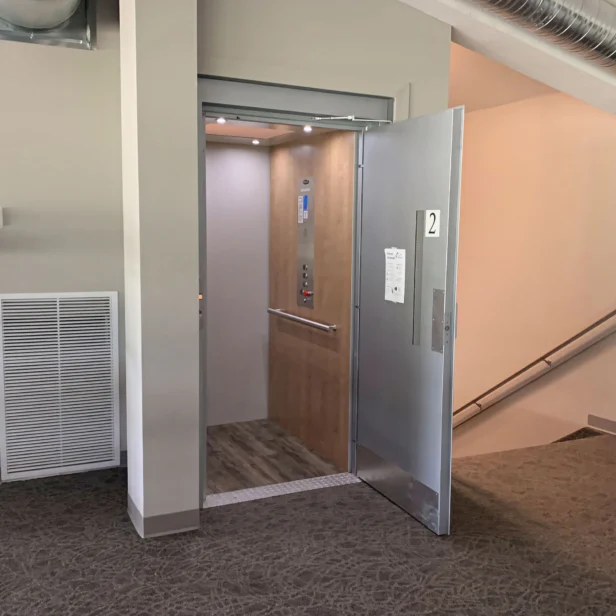

Savaria Prolift.

Elevate Your Space with Premium Vertical Platform Solutions

Introducing the Savaria Prolift, an enclosed vertical platform lift that brings the elegance and convenience of a traditional elevator to both residential and commercial indoor environments. Designed to effortlessly service up to six stops and reach a maximum travel distance of 14 feet, the Prolift ensures smooth and efficient vertical transportation with its advanced hydraulic drive system, achieving impressive speeds of up to 30 ft./min.—the fastest in our VPL range. For optimal operation, a dedicated machine room is required to house the hydraulic drive system, providing constant pressure controls for a user-friendly experience at every stop. Choose the Prolift HD model for heavy-duty applications, boasting an impressive 1400-lb. capacity. Customize your lift with a range of cab finishes, sizes, and entry/exit configurations to seamlessly blend into any architectural setting. For specialized needs, consider the dignified casket-lift option, tailored for funeral homes and similar environments.

  • Durable, reliable design: Well-suited to use in public buildings with its reliable hydraulic drive and durable construction
  • Great value: Offers a solid no-frills design with a good complement of features to provide accessibility
  • Other standard features: Constant pressure operation, variable speed valve for smooth ride, submersed pump and motor for quiet operation, automatic on/off cab lighting, magnetic floor selection/re-leveling
  • Standard finishes: Choice of color for melamine walls or plywood interior, four recessed lights with egg crate style white ceiling, stainless steel handrail and cab operating panel with metal buttons and emergency light, plywood floor.
  • Safety features: Emergency alarm and stop buttons, emergency battery back-up for cab lighting, alarm and lowering, car top stop switch.

PROLIFT SCL
ApplicationsCommercial, residential, indoors
Standard Capacity750 lb (340 kg), 1000 lb (454 kg)
Optional capacity1050 lb (476 kg)
Maximum travel14′ (426 cm) USA, 23′ (700 cm) Canada
Nominal speed30 ft/min (0.15 m/s)
Drive/motor1:2 cable hydraulic drive, 3 hp submersed
Minimum pit8″ (203 mm)
Minimum overhead clearance92″ (2337 mm)
Power supply208 volt, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 40 amps
PROLIFT HD
ApplicationsCommercial, residential, indoors.
Standard Capacity1050 lb (476 kg), 1400 lb (635 kg)
Maximum travel14′ (426 cm) USA, 23′ (700 cm) Canada
Nominal speed30 ft/min (0.15 m/s)
Drive/motor1:2 cable hydraulic drive, 5 hp submersed
Minimum pit12″ (305 mm)
Minimum overhead clearance92″ (2337 mm)
Power supply208 volt, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 40 amp

Frequently Asked Questions

Yes, many platform lifts are specifically designed for outdoor use. These lifts are built to withstand various weather conditions and provide reliable accessibility to outdoor areas like porches, decks, and garages. Ensure that the lift you choose is rated for outdoor use.

The cost of installing a platform lift can vary based on factors such as the lift type, installation complexity, and any customization needed. Basic models are more affordable, while higher-end lifts with additional features can be more expensive. It’s best to get a quote from your local 101 Mobility to understand the total cost.

Yes, many platform lifts offer customization options to meet your specific needs and preferences. You can choose from various platform sizes, weight capacities, and features like automatic doors, remote controls, and different finishes to match your home’s decor.

Vertical Platform Lifts (VPL): Ideal for customers who need to travel between floors where stairs are not an option or for outdoor settings where height differences exist without steps ( such as from a garage to a main floor, or from ground level to a porch or deck).

Inclined Platform Lifts (IPL): Best suited for buildings with existing staircases, especially where space for a VPL is limited or where the staircase needs to remain usable by others when the lift is not in use.
