Savaria Infinity

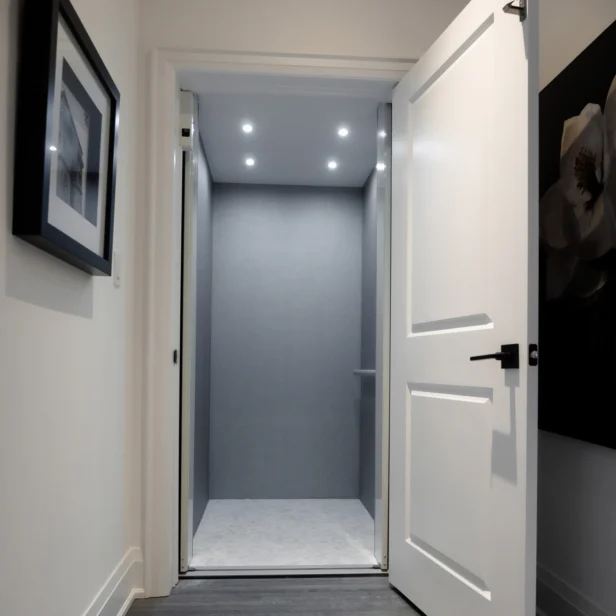

savaria infinity home elevator.

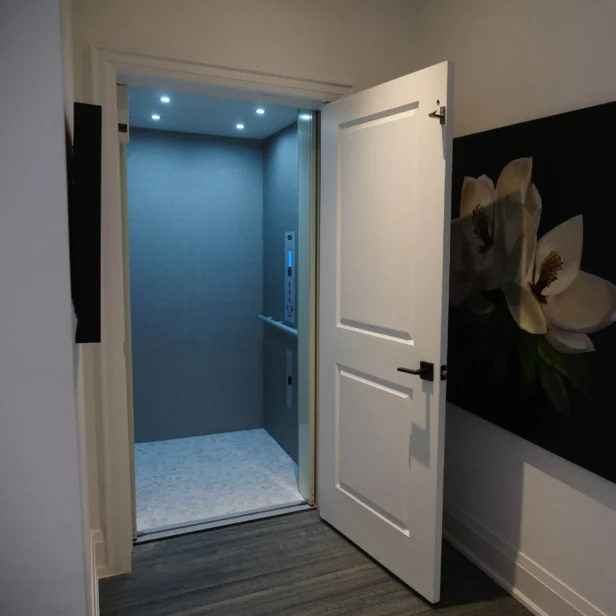

savaria infinity home elevator open.

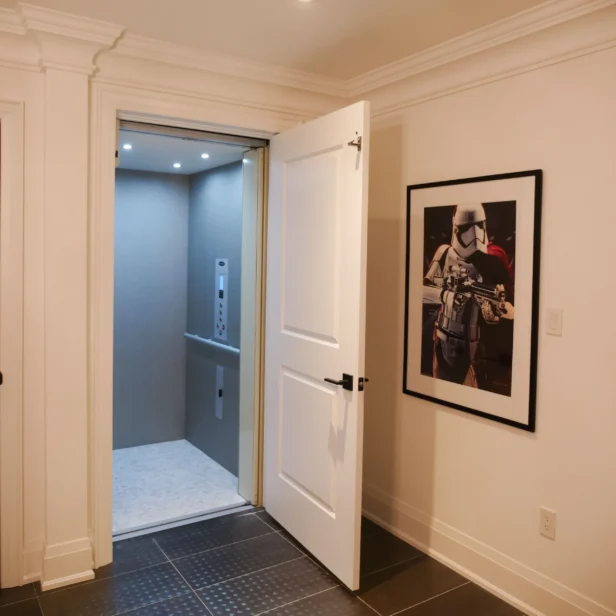

savaria infinity home elevator.

The Savaria Infinity residential elevator offers smooth and quiet operation, blending with any home décor. Its self-contained submersible hydraulic pump and motor provide a small footprint, complementing the Infinity’s customizable, modern design. High-tech features include fully automatic operation, a digital operating panel, and a digital floor and directional indicator, making it a top choice for a stylish and functional home elevator.

Get a Free Consultation

  • Automatic and illuminated push buttons for easy operations
  • Magnetic floors for automatic leveling at each landing
  • Automatic cabin lighting with four LED down lights for comfort
  • Submersible and variable speed pressure valve for safe travel
  • Lockable control panel to prevent usage from children or any other unwanted users
  • Battery-operated emergency lowering and lighting and manual emergency lowering button in the event of power failure
  • Basic surface-mount telephone for communication from the cabin
  • Slack-rope safety system for security in case of emergency
  • In-use indicator lights on hall station to alert others of operation
  • Recessed plywood floors for added style
  • Emergency alarm and stop buttons in the event of catastrophic failure
  • Cylindrical handrails in the cabin for balance during travel
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty

Savaria Infinity
Maximum lift height50’ (15.24 m)
Maximum number of stops6
Minimum pit depth8” (203 mm)
Maximum speed40 fpm (0.20 m/s)
Drive/motor1:2 cable hydraulic drive, 3 hp

  • Alphanumeric button marking – Buttons are labeled with letters and symbols, offering an alternative system for operation understanding
  • Cabin ceiling finish – Two different finishes for added style
    • Standard architectural white
    • White MDF
  • Additional option to match cabin ceiling finish to wall finish
  • Cabin configurations – Five different cabin configurations for optimum customization:

Type 1: One left-hand or right-hand door

Car sizeWidthDepthClear opening
36″ x 48″ (914 mm x 1219 mm)50.5″ (1282.7 mm)55″ (1397 mm)
36″ (914 mm)
36″ x 54″ (914 mm x 1372 mm)50.5″ (1282.7 mm)61″ (1549 mm)
36″ (914 mm)
36″ x 60″ (914 mm x 1524 mm)50.5″ (1282.7 mm)67″ (1702 mm)36″ (914 mm)
40″ x 54″ (1016 mm x 1372 mm)54.5″ (1384.3 mm)61″ (1549 mm)36″ (914 mm)

Type 2: Two doors, 180-degrees from each other

Car sizeWidthDepthClear opening
36″ x 48″ (914 mm x 1219 mm)50.5″ (1282.7 mm)55″ (1397 mm)36″ (914 mm)
36″ x 54″ (914 mm x 1372 mm)50.5″ (1282.7 mm)61″ (1549 mm)36″ (914 mm)
36″ x 60″ (914 mm x 1524 mm)50.5″ (1282.7 mm)67″ (1702 mm)36″ (914 mm)
40″ x 54″ (1016 mm x 1372 mm)54.5″ (1384.3 mm)61″ (1549 mm)36″ (914 mm)

Type 3: Two doors, 90-degrees from each other

Car sizeWidthDepthClear Opening
36″ x 48″ (914 mm x 1219 mm)52.125″ (1323.975 mm)55″ (1397 mm)Door B: 36″ (914 mm)
Door C: 34.625″ (879.475 mm)
36″ x 54″ (914 mm x 1372 mm)52.125″ (1323.975 mm)61″ (1549 mm)Door B: 36″ (914 mm)
Door C: 34.625″ (879.475 mm)
36″ x 60″ (914 mm x 1524 mm)52.125″ (1323.975 mm)67″ (1702 mm)Door B: 36″ (914 mm)
Door C: 34.625″ (879.475 mm)
40″ x 54″ (1016 mm x 1372 mm)56.125″ (1425.575 mm)
61″ (1549 mm)Door B: 36″ (914 mm)
Door C: 36″ (914 mm)

Type 4: Two doors, 90-degrees from each other

Car sizeWidthDepthClear Opening
36″ x 48″ (914 mm x 1219 mm)52.125″ (1323.975 mm)55″ (1397 mm)Door A: 34.625″ (879.475 mm)
Door B: 36″ (914 mm)
36″ x 54″ (914 mm x 1372 mm)52.125″ (1323.975 mm)61″ (1549 mm)Door A: 34.625″ (879.475 mm)
Door B: 36″ (914 mm)
36″ x 60″ (914 mm x 1524 mm)52.125″ (1323.975 mm)67″ (1702 mm)Door A: 34.625″ (879.475 mm)
Door B: 36″ (914 mm)
40″ x 54″ (1016 mm x 1372 mm)56.125″ (1425.575 mm)
61″ (1549 mm)Door A: 36″ (914 mm)
Door B: 36″ (914 mm)

Type 5: One door, compatible with three different sides of cabin

Car sizeWidthDepthClear opening
36″ x 48″ (914 mm x 1219 mm)52.125″ (1323.975 mm)56.25″ (1428.75mm)36″ (914 mm)
36″ x 54″ (914 mm x 1372 mm)52.125″ (1323.975 mm)62.25″ (1581.15 mm)36″ (914 mm)
36″ x 60″ (914 mm x 1524 mm)52.125″ (1323.975 mm)68.25″ (1733.55 mm)36″ (914 mm)
40″ x 54″ (1016 mm x 1372 mm)56.125″ (1425.575 mm)62.25″ (1581.15 mm)36″ (914 mm)
  • Cabin entrance trim finish – Two different finishes for added style:
    • Bronze anodized aluminum
    • Clear anodized aluminum
  • Cabin gate style – Eight different styles for optimum customization:
    • Black scissor style
    • Clearfold style – clear anodized frame with clear acrylic inserts
    • Panelfold styles:
      • Bronze anodized frame with all antique white inserts
      • Bronze frame with antique white inserts plus three clear acrylic inserts
      • Clear anodized frame with all antique white inserts
      • Clear anodized frame with antique white inserts plus three clear acrylic inserts
    • Visifold style – bronze frame with bronze acrylic inserts
    • Savaria automatic slim doors (requires 84” (2134 mm)-tall cabin)
  • Cabin lights finish – Four different finishes for added style:
    • Recessed brass down lights
    • Recessed bronze anodized aluminum down lights
    • Recessed clear anodized aluminum down lights
    • Recessed stainless steel down lights
  • Cabin operating panel finish – Four different finishes for added style:
    • Brass
    • Bronze anodized aluminum
    • Clear anodized aluminum
    • Stainless steel
  • Cabin sizes – Four different cabin sizes for optimum customization. Additional options for custom cabin sizes, up to 15 square feet:
    • 36” x 48” x 80” (914 mm x 1219 mm x 2032 mm) Compatible with cabin configuration types 1, 2, 3, 4 and 5
    • 36” x 54” x 80” (914 mm x 1371 mm x 2032 mm) Compatible with cabin configuration types 1, 2, 3, 4 and 5
    • 36” x 60” x 80” (914 mm x 1524 mm x 2032 mm) Compatible with cabin configuration types 1, 2, 3, 4 and 5
    • 40” x 54” x 80” (1016 mm x 1372 mm x 2032 mm) Compatible with cabin configuration types 1, 2, 3, 4 and 5
    • Cabin walls finish – 20 different finishes in six different materials for added style:
      • White MDF
      • Luxury routered white MDF
      • Melamine finishes:
        • Dark Cherry
        • Cherry
        • Candlelight
        • Red Oak
        • Silken Maple
        • Antique White
      • Hall call station finish – Available in a rectangular or oval shape as well as four different finishes for added style:
        • Brass
        • Bronze anodized aluminum
        • Clear anodized aluminum
        • Stainless steel
      • Red oak raised hardwood finishes:
        • Autumn
        • Cordoba
        • Walnut
      • Maple raised hardwood finishes:
        • Bamboo
        • Merlot
        • Nutmeg
      • Cherry raised hardwood finishes:
        • Bamboo
        • Cordoba
        • Walnut
      • Unfinished veneer finishes:
        • Oak
        • Cherry
        • Maple
        • Birch
  • Heavy-duty configuration – Cabin configuration boasts a larger capacity. Technical specifications and options:
    • Weight capacity: 1400 lbs (635 kg)
    • Compatible with cabin configuration types 1, 2, 3, 4 and 5
    • Minimum pit depth: 12” (305 mm)
    • Minimum overhead clearance:
      • 92” (2337 mm) for 80” (2032 mm)-tall cabin
      • 96” (2438 mm) for 84” (2134 mm)-tall cabin
      • 108” (2743 mm) for 96” (2438 mm)-tall cabin
  • Optional cabin size:
    • 48” x 60” x 80” (1219 mm x 1524 mm x 2032 mm) Compatible with cabin configuration types 1, 2, 3, 4 and 5
    • Interlocks – Choice of Kwiklock or EMI-Porta elevator door interlocks to ensure secure travel
    • Internal cabin height – Three different internal cabin heights for optimum customization:
      • 80” (2032 mm) – minimum overhead clearance: 92” (2337 mm)
      • 84” (2134 mm) – minimum overhead clearance: 96” (2438 mm)
      • 96” (2438 mm) – minimum overhead clearance: 108” (2743 mm)
  • Keyed hall station – Locks the hall station to prevent usage from children or any other unwanted users
  • Power gate and power door operator – Enables gate and door to open and close automatically with no manual effort for easy boarding and exiting
  • Power supply required – Three different power supply requirements for optimum customization:
    • 230V 1 phase 60 Hz
    • 208V 3 phase 60 Hz
    • 220V 1 phase 50 Hz
  • Telephone cabinet and finish – Cabinet encloses telephone for storage. Four different finishes for added style:
    • Bronze anodized aluminum
    • Recessed brass
    • Recessed clear
    • Stainless steel
  • Weight capacity – Three different weight capacities for optimum customization:
    • 750 lbs (340 kg)
    • 950 lbs (431 kg)
    • 1000 lbs (454 kg)

Savaria Infinity Brochure (English)
Savaria Automatic Slim Door Brochure (English)
Savaria Infinity Color Chart (English)

Frequently Asked Questions

The space required for a home lift varies depending on the type and model. Compact models can fit into surprisingly small spaces and can be installed with minimal modifications to your home. Generally, you’ll need a clear area for the lift shaft and space for the machinery, but many lifts are designed to be as space-efficient as possible.

Absolutely! Home lifts can be retrofitted into most existing homes. Installation might involve some construction work, like creating a lift shaft, but many models are designed to be minimally invasive. A professional assessment can determine the best placement and type of lift for your home.

Home lifts require regular maintenance to ensure they operate safely and efficiently. This usually involves periodic inspections, cleaning, and lubrication of moving parts. Most providers offer maintenance packages, and it’s a good idea to schedule regular check-ups to keep your lift in top condition.

Most modern home lifts come equipped with a battery backup system. This ensures that the lift can be safely operated or moved to the nearest floor in the event of a power outage. Always check with your provider to understand the specific features and safety mechanisms of your home lift.
