Bruno VPL

Offering Several Options to Fit Your Unique Needs

With a 14-foot (4343 mm) height capacity and the ability to carry up to 750 pounds (340 kg), the Bruno VPL can take you to new heights. This sturdy, easy-to-use vertical platform lift provides reliable accommodation for your wheelchair or powerchair. Models in the 3200 series come with a standard emergency lowering feature for added peace of mind.

Explore our brochures to learn more:

Product Features

  • Weight capacity: 750 lbs (340 kg) Made in the USA
  • Automatic self-lowering folding ramp for simple boarding and exiting
  • A non-skid platform for wheelchair or powerchair balance
  • Safety sensors for obstruction detection
  • Weather-resistant unit coating and controls for durability under any
  • Emergency stop switch on platform wall for ensured safety
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty

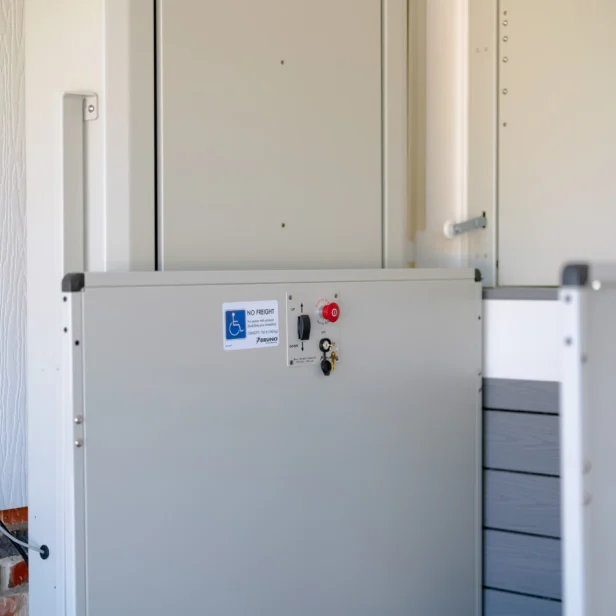

  • Continuous pressure rocker switch on platform wall for easy operation
  • Emergency lowering feature standard on 3200 models
  • Champagne-colored finish for sleek design

Technical Specifications

  • Technical specifications for individual models: VPL-3100 series: VPL-3153
    • AC-powered models available
    • Minimum lift height: 11” (279 mm)
    • Maximum lift height: 53” (1346 mm)
  • Technical specifications for all models:
    • Platform wall height: 42″ (1067 mm)
  • VPL-3153B
    • DC-powered with back-up battery for extended use during a power outage
    • Minimum lift height: 11” (279 mm)
    • Maximum lift height: 53” (1346 mm)
  • VPL-3175
    • AC-powered for more affordable electric bills
    • Minimum lift height: 32” (813 mm)
    • Maximum lift height: 75” (1905 mm)
  • VPL-3175B
    • DC-powered with back-up battery for extended use during a power outage
    • Minimum lift height: 32” (813 mm)
    • Maximum lift height: 75” (1905 mm)
  • VPL-3200 series: VPL-3210B
    • DC-powered with back-up battery for extended use during a power outage
    • Maximum lift height: 123” (3124 mm)
  • VPL-3212B
    • DC-powered with back-up battery for extended use during a power outage
    • Maximum lift height: 147” (3734 mm)
  • VPL-3214B
    • DC-powered with back-up battery for extended use during a power outage
    • Maximum lift height: 171” (4343 mm)

Product Options

Options for both the VPL-3100 and VPL-3200 series: Multiple platform sizes and configurations

  • All platforms available in the following sizes:
    • 36” x 48” (914 mm x 1219 mm)
    • 36” x 54” (914 mm x 1372 mm)
    • 36” x 60” (914 mm x 1524 mm)
    • 42” x 60” (1067 mm x 1524 mm)
  • Options for VPL-3200 series only:
    • On/off same-side platform
    • Telephone kit
    • Stationary ramp for lower landing – 3” (76 mm) tall
    • Power-assisted door gate operator
  • Unenclosed platform options:
    • Straight platform
      • Pit
      • No pit
    • Same-side platform
      • Pit
      • No pit
    • 90-degree adjacent platform
      • Pit
      • No pit
  • Unenclosed platform options:
    • Straight platform
      • Pit
      • No pit
    • 90-degree adjacent platform
      • Pit
      • No pit
  • Platform gate – Encloses lift for controlled access onto the platform at lower landing. Mechanical interlock releases gate at the lower landing and electronic sensors prevent the platform from operating unless the gate is closed.
  • DC battery powered – Equipped with a back-up battery for extended use during a power outage. This is a standard feature for platforms that lift 10-feet or higher.
  • Landing call/send station – Call/send station at the landing of choice with a keyed on/off switch
  • Paddle controls – Ergonomic paddle controls on the platform for easy, comfortable lift operation
  • Cold-weather package – Improves lift performance when operating in temperatures below 20 degrees Fahrenheit (-7 degrees Celsius)
  • Top landing gate – Encloses lift for controlled access onto the platform at the top landing. Mechanical interlock releases gate at the upper landing and electronic sensors prevent the platform from operating unless the gate is closed. An option also includes call/send switches (either push-button or paddle control) and a keyed on/off switch mounted into the gate frame. Gate height available in 36” and 42”
