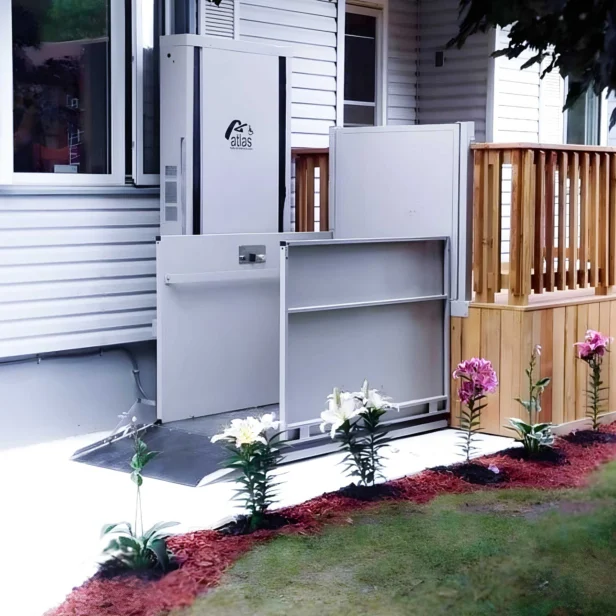

Atlas Vista Vertical Platform Lift

Our Expert Technicians Offer Professional Installation

The Atlas Vista Vertical Platform Lift features a compact design to easily fit any home or business. This rugged lift is specifically designed to withstand severe climates, including extreme heat, freezing temperatures, rain, and ice.





Product Features

  • Available in three configurations: 0 degrees, 90 degrees, and 180 degrees
  • Safety Features:
    • Safety underpan for obstruction detection
    • Emergency lowering device
    • Emergency alarm
    • Automatic folding ramp for simple boarding and exiting
    • Keylock switches
    • Pit switches
    • Continuous pressure rocker switches
  • Warranty: Atlas 12-Month Limited Warranty on parts
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty

Technical Specifications

  • Weight capacity: 750-1000 lbs.
  • Drive: ACME screw drive
  • Speed: 12 FPM
  • Lifting Height: 160 inches
  • Motor: 1.5 HP – 24 VDC
  • Safety Standards: CSA B613, B355, ASME 17.1, ASME 18.1

Product Options

  • Custom cabin heights, platform sizes, and configurations
  • Custom travel distance ranging from 44” to 160”
  • Wide range of door/gate sizes and finishes

Let us show you how we can help you regain your independence.

  1. Home consultation typically takes an hour or less
  2. Customized quote to meet your needs
  3. Installed at your convenience
