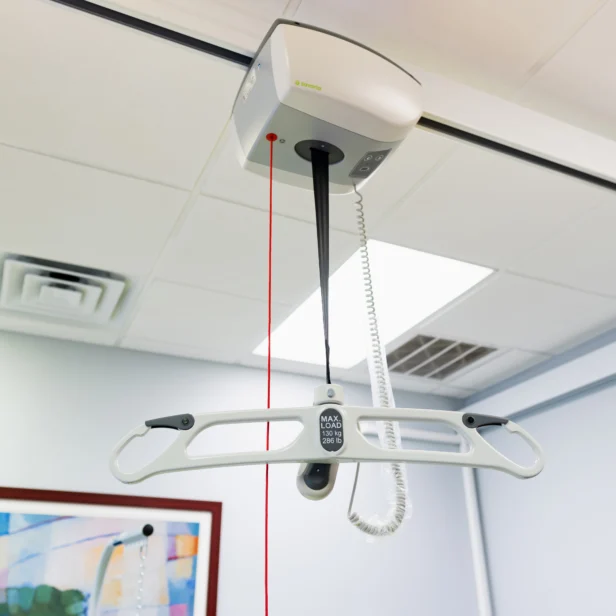

Ceiling-mounted patient lift with a red laser guide and control panel. A framed abstract painting is visible on the wall in the background.

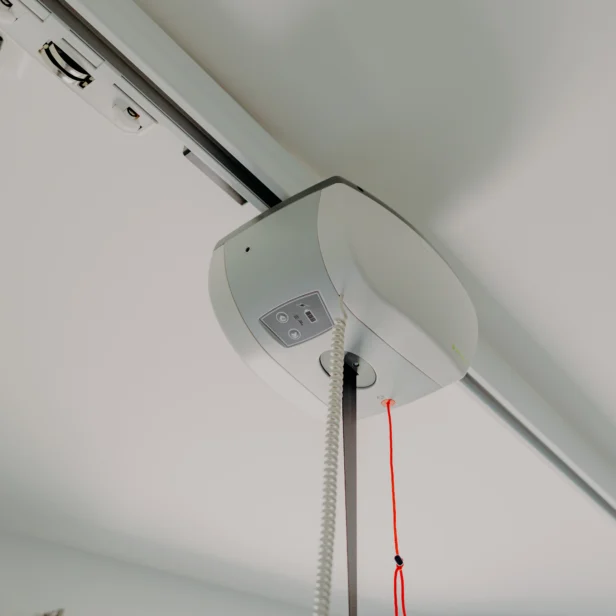

Close-up view of a overhead patient lift installed on the ceiling, with a red pull cord hanging down and a track extending across the ceiling.

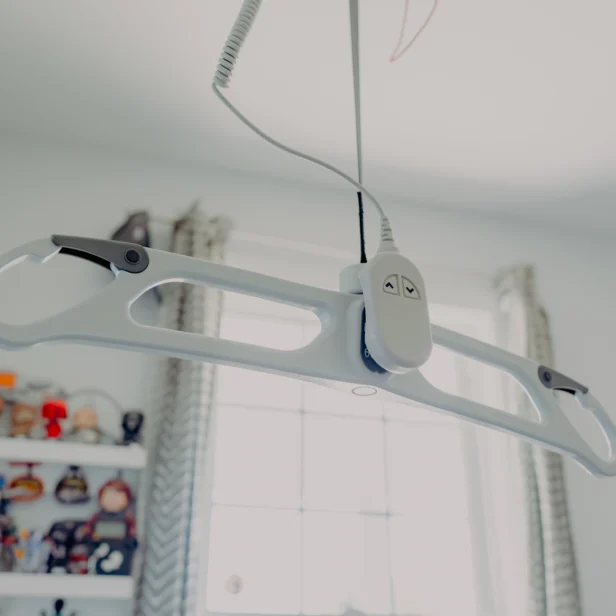

Overhead patient lift hangs from the ceiling by a cord in a room with shelves and a window in the background.
An overhead patient lift with a blue and yellow harness is mounted in a room with a calendar, poster, and window.

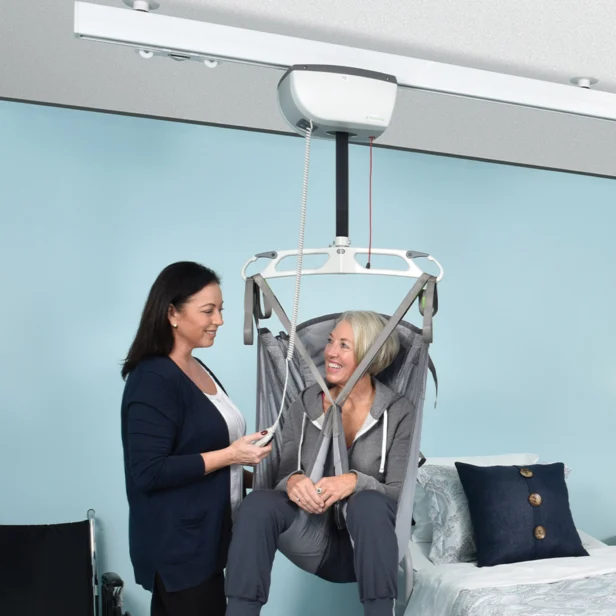

span america overhead lift.

Simple Design, Reliable Performance

For safe patient handling, 101 Mobility recommends the Fixed Patient Lift by Span America. This overhead lift, a prime piece of medical lifting equipment, offers a simple yet effective design that meets the needs of caregivers and their patients. With extensive feedback from caregivers, Span America has addressed common challenges in patient transfer equipment. By focusing on reliability and ease of use, this lift ensures seamless patient transitions, enhancing both caregiver efficiency and patient safety.

Get a Free Consultation

  • Power: fast lift speed even at maximum capacity lifting weight
  • Fewer replacements: battery replacement estimated at every 5 years
  • More lift cycles: delivers 50% more lift cycles/charge than the industry average
  • More reliable: fewer service calls for dead batteries
  • Less charging time: recharges from full depletion in only 2 hours
  • No memory effect: battery does not deteriorate from constant charging
  • Greener: no lead acid disposal issues and longer life of the battery

Span america overhead lifts
Product weight
  • Manual model: 7.5 kg (17 lb)
  • Motorized model: 8.5 kg (19 lb)
Safe working load (SWL)
  • 272 kg (600 lb)
  • 200 kg (440 lb)
  • 130 kg (286 lb)
Water ingress protection rating of liftIP21
Medical electrical equipment classClass 1
Warranty2 years
Battery capacity
  • Approximately 80 cycles of 61 cm (24 in) at 91 kg (200 lb)
  • Approximately 70 cycles of 61 cm (24 in) at 130 kg (286 lb)
  • Approximately 45 cycles of 61 cm (24 in) at 200 kg (440 lb)
  • Approximately 30 cycles of 61 cm (24 in) at 272 kg (600 lb)
Controls
  • Lift controls: UP and DOWN buttons to raise and lower the lift
  • Hand control: UP, DOWN, LEFT, and RIGHT buttons to raise and lower the lift, and move along the track
  • Hand control operating force: 4-4.5N
  • Water ingress protection rating of hand control: IP67
  • On/Off power switch: Used to shut off power to the lift and as an emergency stop feature
Compliance
  • CE Marking per 93/42/EEC (medical device)
  • 2011/65/EU (ROHS – 100% of components)
  • 2006/42/EC (machinery directive)
  • 2002/96/EC (WEEE)
Product life expectancy10 years with only 1 battery replacement
Lifting speed
  • 5 cm/sec (2.2 in/sec) at 0 kg
  • 5 cm/sec (2 in/sec) at 130 kg (286 lb)
  • 5 cm/sec (1.8 in/sec) at 200 kg (440 lb)
  • 4 cm/sec (1.6 in/sec) at 272 kg (600 lb)
Noise levelMaximum 54 dBA
Protection classType BF
Battery typeLithium ion, 25.2V 2500 mAh
Battery chargingFull capacity in approximately 2 hours
Certification
  • ISO 10535:2006 (patient lift)
  • IEC 60601-1:2005 A1:2012 (medical electrical equipment)
  • CAN/CSA Z10535.1:15 (patient lift)
  • IEC 60601-1-11:2015 (homecare)

Frequently Asked Questions

A patient lift is a device used to assist caregivers in safely lifting and transferring individuals with limited mobility from one place to another, such as from a bed to a wheelchair.

Many patient lifts are designed to be operated by a single caregiver, but having additional assistance can improve safety and ease of use, especially with larger or less mobile patients.

101 Mobility offers a range of patient lifts, including ceiling lifts, wall-mounted lifts, and portable lifts. Our team can help assess your needs and recommend the most suitable lift, based on the level of assistance required and the available space.
