We Offer Three Unique Options

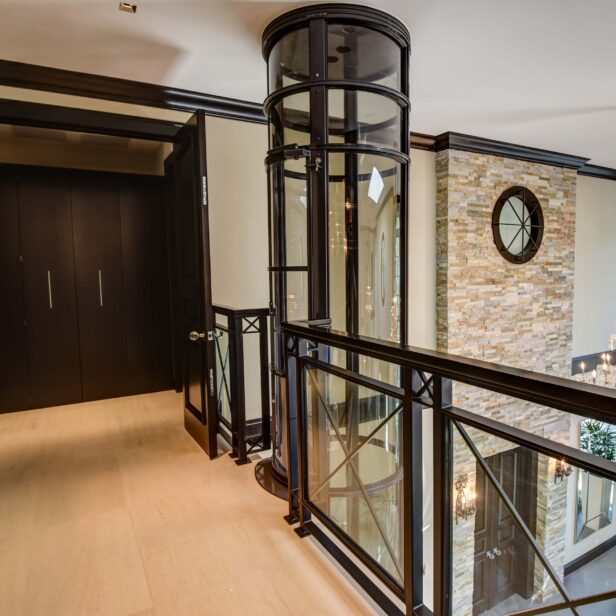

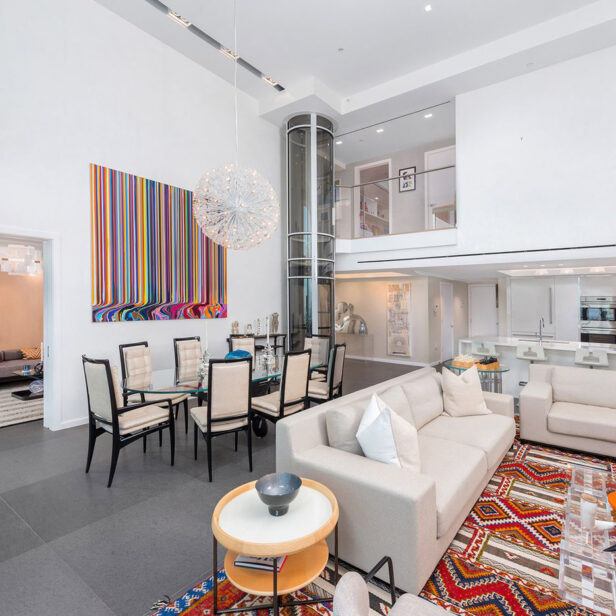

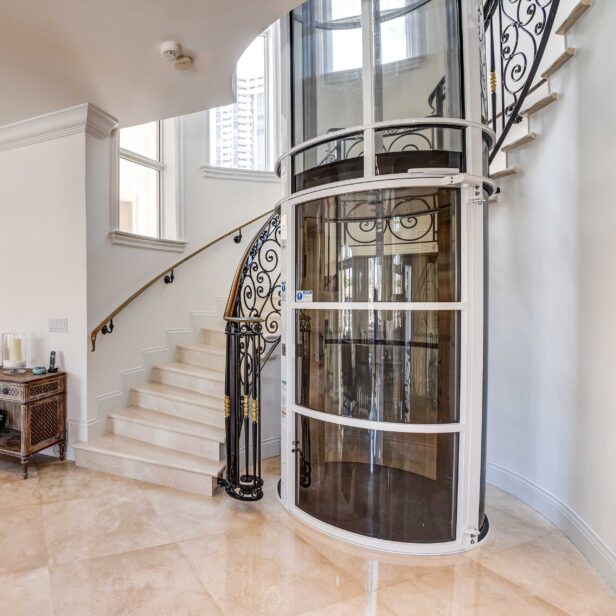

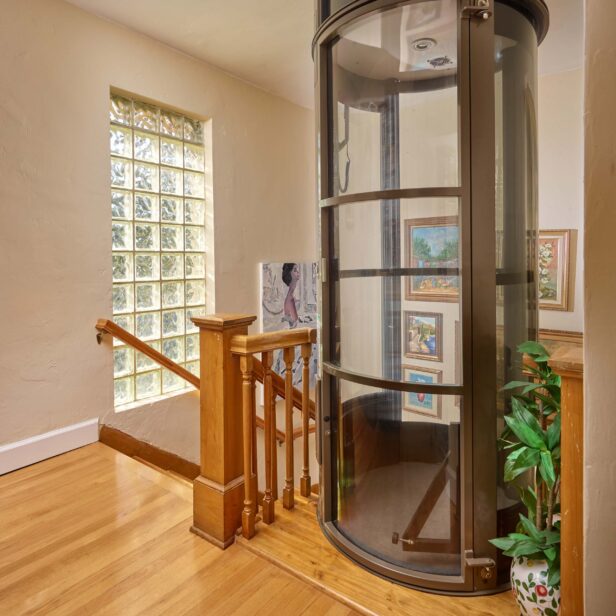

PVE52 Pneumatic Residential Elevator

Out of the three models in the Pneumatic Vacuum Elevator series, the PVE52 boasts the largest cabin size and highest weight capacity. However, as a self-supporting structure, the compact elevator requires very little modification to your home. Additionally, this polycarbonate and aluminum elevator doesn’t use electricity to descend its panoramic cabin and makes the most out of your home by requiring no pits, hoist ways, or machine rooms.




Product Features

  • Weight capacity: 525 lbs (238 kg)
  • Push-button call controls for easy operation
  • Precise leveling at each landing for smooth boarding and exiting
  • Electromechanical interlocks at each landing to ensure secure travel
  • Automatic cabin LED lighting and fan for comfort
  • Same-side door openings for boarding and exiting
  • Automatic descent to ground level at safety speed for landing in the event of a power failure
  • Mechanical emergency brake system with 2” of freefall to ensure safety in the event of a catastrophic failure or vacuum loss
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty
  • Through-floor or balcony mount landings for seamless installation

Technical Specifications

  • Maximum lift height: 36’ (11 m)
  • Maximum number of stops: 4
  • Hole diameter needed for installation: 54.69” (1389 mm)
  • External cylinder diameter: 52.69” (1338 mm)
  • Internal cabin diameter: 43.5” (1118 mm)
  • Internal cabin height: 79” (2007 mm)
  • Entranceway opening: 32” (813 mm)
  • Power supply required: 35 AMP, 220VAC
  • Number of turbines: 6 (60 KW)

Product Options

  • Alarm system and telephone – Allows for communication from the cabin in the event of a catastrophic failure or vacuum loss
  • Cabin key lock – Locks the cabin to prevent usage from children or any other unwanted users
  • Cabin seat – Installed in the cabin to provide a seating option for riders
  • Earthquake brackets – Designed to stop cabin travel in the event of an earthquake or seismic event
  • Finish colors – Six different shade selections for added style:
    • Anodized Silver
    • Black
    • Light Gray
    • Standard Dark Gray
    • Taupe
    • White
  • Unit configuration:
    • Standard – Turbine motors located on top of the elevator. 107” clearance needed for installation
    • Split – Turbine motors located remotely. 97” clearance needed for installation
  • Opposite cabin door opening – Total of two doors/entranceways installed in the cabin, one 180 degrees from the other, to allow boarding and exiting from opposite sides

Architect Resources

PVE30 Pneumatic Residential Elevator

PVE30 Pneumatic Residential Elevator

The sleek and slender PVE30 Pneumatic Residential Elevator might be small, but its green footprint makes quite an impression. Out of the three models in the Pneumatic Vacuum Elevator series, the PVE30 draws the least amount of electricity as it transports riders in its panoramic cabin. Additionally, this polycarbonate and aluminum elevator doesn’t use electricity to descend and makes the most out of your home by requiring no pits, hoist ways, or machine rooms.

Product Features

  • Weight capacity: 350 lbs (159 kg)
  • Push-button call controls for easy operation
  • Precise leveling at each landing for smooth boarding and exiting
  • Electromechanical interlocks at each landing to ensure secure travel
  • Automatic cabin LED lighting and fan for comfort
  • Same-side door openings for boarding and exiting
  • Automatic descent to ground level at safety speed for landing in the event of a power failure
  • Mechanical emergency brake system with 2” of freefall to ensure safety in the event of a catastrophic failure or vacuum loss
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty
  • Through-floor or balcony mount landings for seamless installation

Technical Specifications

  • Maximum lift height: 35’ (10.5 m)
  • Maximum number of stops: 4
  • Hole diameter needed for installation: 32” (813 mm)
  • External cylinder diameter: 30” (762 mm)
  • Internal cabin diameter: 20.5” (521 mm)
  • Internal cabin height: 79” (2006 mm)
  • Entranceway opening: 20.5” (521 mm)
  • Power supply required: 25 AMP, 220VAC
  • Number of turbines: 3 (30 KW)

Product Options

  • Alarm system and telephone – Allows for communication from the cabin in the event of a catastrophic failure or vacuum loss
  • Cabin key lock – Locks the cabin to prevent usage from children or any other unwanted users
  • Cabin seat – Installed in the cabin to provide a seating option for riders
  • Earthquake brackets – Designed to stop cabin travel in the event of an earthquake or seismic event
  • Finish colors – Six different shade selections for added style:
    • Anodized Silver
    • Black
    • Light Gray
    • Standard Dark Gray
    • Taupe
    • White
  • Unit configuration:
    • Standard – Turbine motors located on top of the elevator. 107” clearance needed for installation
    • Split – Turbine motors located remotely. 97” clearance needed for installation

Architect Resources

PVE37 Pneumatic Residential Elevator

PVE37 Pneumatic Residential Elevator

As a self-supporting structure, the compact PVE37 Pneumatic Residential Elevator requires very little modification to your home. Additionally, this polycarbonate and aluminum elevator doesn’t use electricity to descend its panoramic cabin and makes the most out of your home by requiring no pits, hoist ways, or machine rooms.

Product Features

  • Weight capacity: 450 lbs (204 kg)
  • Push-button call controls for easy operation
  • Precise leveling at each landing for smooth boarding and exiting
  • Electromechanical interlocks at each landing to ensure secure travel
  • Automatic cabin LED lighting and fan for comfort
  • Same-side door openings for boarding and exiting
  • Automatic descent to ground level at safety speed for landing in the event of a power failure
  • Mechanical emergency brake system with 2” of freefall to ensure safety in the event of a catastrophic failure or vacuum loss
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty
  • Through-floor or balcony mount landings for seamless installation

Technical Specifications

  • Maximum lift height: 35’ (10.5 m)
  • Maximum number of stops: 4
  • Hole diameter needed for installation: 39” (991 mm)
  • External cylinder diameter: 37” (933 mm)
  • Internal cabin diameter: 32” (813 mm)
  • Internal cabin height: 77.75” (1956 mm)
  • Entranceway opening: 21” (542 mm)
  • Power supply required: 30 AMP, 220VAC
  • Number of turbines: 5 (50 KW)

Product Options

  • Alarm system and telephone – Allows for communication from the cabin in the event of a catastrophic failure or vacuum loss
  • Cabin key lock – Locks the cabin to prevent usage from children or any other unwanted users
  • Cabin seat – Installed in the cabin to provide a seating option for riders
  • Earthquake brackets – Designed to stop cabin travel in the event of an earthquake or seismic event
  • Finish colors – Six different shade selections for added style:
    • Anodized Silver
    • Black
    • Light Gray
    • Standard Dark Gray
    • Taupe
    • White
  • Unit configuration:
    • Standard – Turbine motors located on top of elevator. 107” clearance needed for installation
    • Split – Turbine motors located remotely. 97” clearance needed for installation
  • Opposite cabin door opening – Total of two doors/entranceways installed in cabin, one 180 degrees from the other, to allow boarding and exiting from opposite sides

Architect Resources
