Harmar AL100/AL100HD

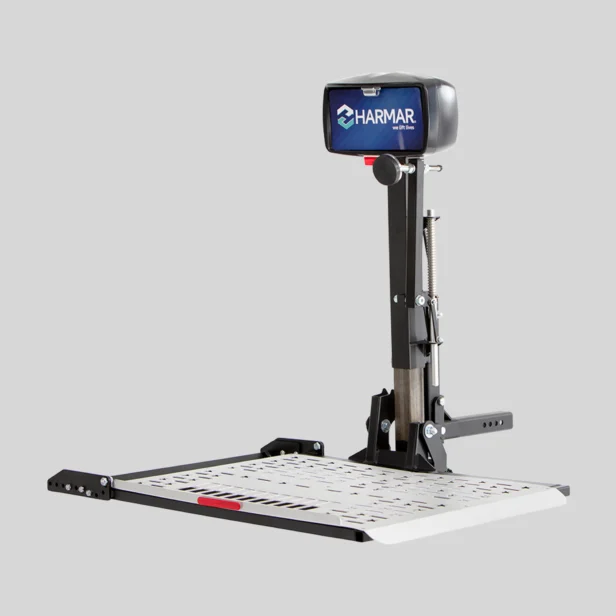

A black and silver Harmar vehicle lift against a plain background. The platform is designed for transporting mobility devices such as scooters or wheelchairs.

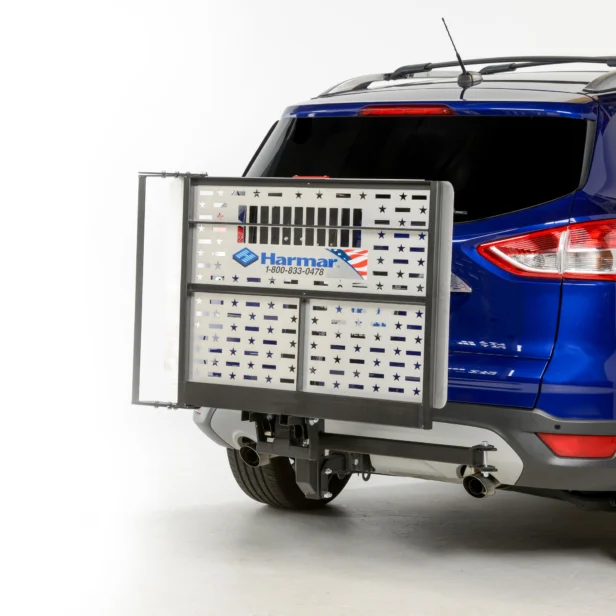

A metal wheelchair carrier with a silver star pattern is attached to the back of a blue SUV. The carrier displays a "Harmar" logo and phone number.

Designed for Scooters, Power Wheelchairs & Other Mobility Devices

101 Mobility recommends the Harmar AL100/AL100AD wheelchair and scooter carriers for those seeking a versatile, space-saving solution. Our Mobility Specialists will install this electric wheelchair lift for your van or car into a trailer hitch, allowing you to raise and lower the platform with the touch of a button.

Get a Free Consultation

  • Automatic hold-down foot and rear-wheel cradle for maximum power scooter securement on the platform
  • License plate holder and light for license plate visibility
  • A manual crank backup system in the event of a power failure
  • All auto lifts are backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s warranty

Technical specifications for both models
Platform size27.5” x 39” (698.5 mm x 990.6 mm)
Maximum cradle extension46” (1168.4 mm)
Maximum power scooter wheelbase42” (1067 mm)
Hitch height5” – 18” (127 mm – 457 mm)
Technical specifications for AL100 model only
Weight capacity350 lbs (159 kg)
Unit weight83 lbs (38 kg)
Technical specifications for AL100HD model only
Weight capacity400 lbs (181 kg)
Unit weight84 lbs (38 kg)

  • Power swivel seat — Seat swivel powered by armrest switch control and wireless remote for effortless boarding and exiting on the top landing.
  • Power or manual folding rail — Rail folds upward manually or automatically via push-button to create space in a doorway or narrow hallway.
  • Power folding footrest — Footrest folds automatically when the set is raised or lowered.

Harmar AL100 AL100HD Brochure

Frequently Asked Questions

We offer both vehicle-mounted and hitch-mounted wheelchair carriers for different types of vehicles.

Our wheelchair carrier can be installed on most vehicles, but compatibility depends on the make, model, and year of the vehicle.

Many auto lifts can be transferred to a new vehicle, but it may require additional hardware or adjustments.
