Harmar Pinnacle Commercial Stairlift

harmar straight stairlift.
harmar straight stairlift.
harmar straight stairlift.

Enhance Commercial Accessibility

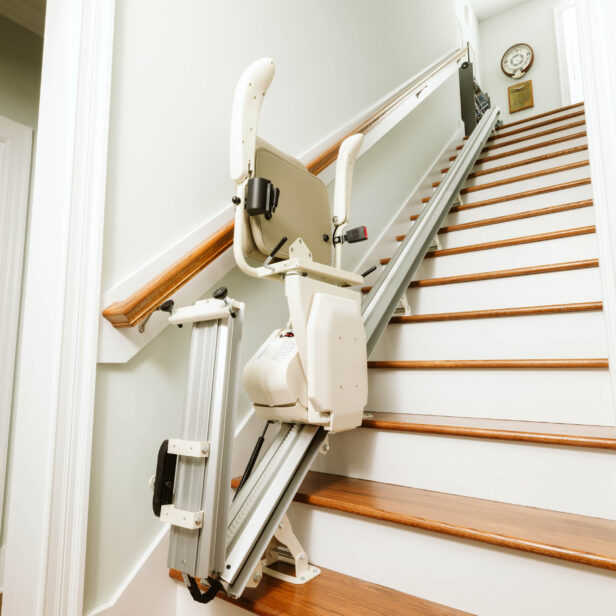

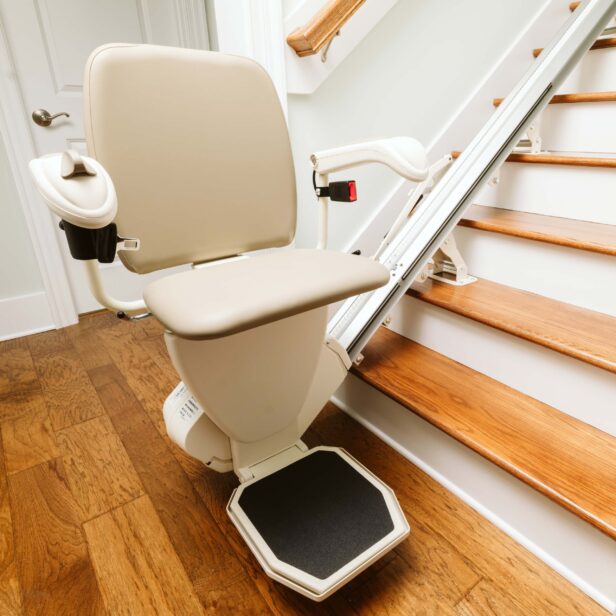

Boasted as the narrowest and lightest model on the market, the Harmar Pinnacle straight rail stairlift provides business owners with a durable mobility solution featuring a sleek design. This commercial stairlift uses a patented helical-worm-gear drive system for a smooth ride from start to finish. The Pinnacle’s grease-free operation ensures easy maintenance and cleanliness. Additionally, the seat height is adjustable for maximum comfort, making it an ideal choice for churches, offices, and other commercial spaces.

Get a Free Consultation

  • Armrest rocker switch for easy operation
  • Offset swivel seat for easy boarding and exiting on the top landing
  • Charge strips above and below the hinge for continuous charge
  • Sensors for obstruction detection
  • Battery operated system for extended use during a power outage
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to Harmar’s Limited Lifetime Warranty
  • Two wireless remotes for remote control
  • Clear anodized aluminum rail for sleek appearance
  • Manual flip-up arms, seat, and footrest for extra space on steps
  • Seat belt
  • Made in the USA

Harmar Pinnacle Commercial Stairlift
Weight capacity
  • SL300: 300lbs
  • SL600: 350 lbs
  • SL600HD: 600 lbs
Folded width
  • SL300:11″ from wall/13.6″ with folding rail
  • SL600: 10.5″ from wall/13.6″ from folding rail
  • SL600HD: 17″ from wall
Maximum speed
  • SL300: 20 FPM
  • SL600: 20 FPM
  • SL600HD: 14 FPM
Drive systemPatented nylon polymer gear rack
  • Helical worm gear
Seat pad size
  • SL300:19″ x 16″
  • SL600: 19″ x 16″
  • SL600HD: 18.5″ x 14″
Incline limits
  • SL300: 27 degrees – 52 degrees
  • SL600: 27 degrees – 52 degrees
  • SL600HD: 27 degrees – 48 degrees
Maximum travel distance
  • SL300:15’6″ to 36′
  • SL600: 15’6″ to 70′
  • SL600HD: 15’6″ to 40′
Power source24V DC battery

  • Power folding rail — Rail folds upward automatically while stairlift moves to create space in a doorway or narrow hallway
  • Check out the Harmar Pinnacle Heavy Duty Stairlift for a larger weight capacity.
