Commercial Omega Incline Lift by Savaria

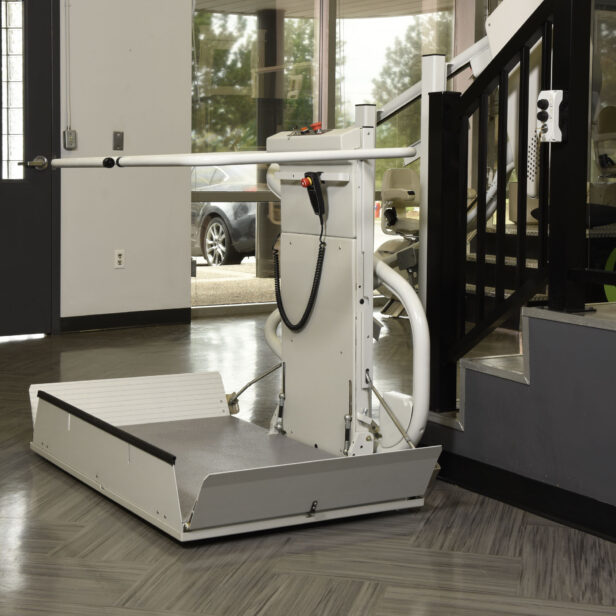

A wheelchair lift is installed next to a stairway, featuring a platform and control panel, providing accessibility to users.

Inclusive Access Solutions for Your Business

The Savaria Omega Inclined Platform Lift is an adaptable and customizable commercial stair lift designed for curved or multi-landing staircases. Perfect for churches, offices, and other commercial settings, the Omega provides seamless transport for wheelchairs and individuals with mobility challenges. This commercial chair lift for stairs fits any staircase configuration, ensuring accessibility in both public and residential spaces. Its discreet design allows the platform to fold up, granting full access to pedestrians when not in use. With various sizes and configurations available, the Omega can tackle any accessibility needs with ease and efficiency.

Get a Free Consultation

  • Weight Capacity: 550 lbs (250 kg) Canada, 660 lbs (300 kg) USA
  • Powered by 240 V standard wall outlet
  • Installation is customizable to any specification, and avoids any significant changes to your home
  • Sensor systems on the platform prevent collision with objects going up and down the stairs, reducing the risk of injury or damage to your home or the lift
  • ADA-compliant platform for commercial use
  • Visible components are kept out of sight, and the motor is installed at the top landing; eliminating the requirement for a machine room
  • Sleek design enables little obstruction of daily activities and enables full access of the stairs
  • Automatic arms and ramps allow for easy access onto the lift, and safety once boarded
  • Backed by 101 Mobility’s One-Year Limited Service Warranty in addition to the manufacturer’s 36-month Parts Warranty

Commercial Omega Incline Lift by Savaria
Drive
  • 1 hp (0.75 kW)
  • 3hp (2.2 kW) over 30 m
Power Supply
  • 240 V AC wall outlet
  • Dual Modular rail system
GradientChanging, with or without landings and turns, up to 55˚
Weight Capacity
  • US: 660 lbs (300 kg)
  • Canada: 550 lbs (250 kg)
Maximum travel Distance164′ (50 m)
Nominal Speed12 ft/min (0.06 m/s)
Safety Features
  • Sensor systems that detect obstacles on all sides of the lift
  • Pedestrian warning light to warn oncoming people of the lifts use
  • Onboard pressure buttons to control lift ensuring that the passenger is in control
  • Non-skid platform with safety flaps
  • Overspeed governor to ensure that the lift does not exceed its nominal limit
  • Manual lowering device in the event that power is lost
  • Power folding safety arms that retract with the push of a button, allowing for easy access onto the ramp and security once on board
  • Emergency stop button to cease movement of the lift in the event of emergency
Omega Inclined Platform Lift Standard sizes
  • W30.5″ x L49.2″ (775 x 1250 mm)
  • W28.3″ x L35.4″ (720 x 900 mm)

  • Key switch – Deactivates the lift to prevent usage from children or any other unwanted users
  • Hideaway parking – Out-of-the-way docking station provides convenient, space-saving parking when not in use
  • Platform size options –
    • 30.5″ x 49.2″ (775 mm x 1250 mm)
    • 28.3″ x 35.4″ (720 mm x 900 mm)
  • Pedestrian warning light and movement alarm – Alerts non-users to lift’s activity. Required to be compliant to ADA standards and building access requirements
  • Fold-down seat – Platform equipped with optional, fold-down seating during travel. Required to be compliant to ADA standards and building access requirements. Seat weight capacity: 330 lbs (150 kg)
  • Cold-weather stabilizer – Improves lift performance when lift operates in temperatures below 20 degrees Fahrenheit (-7 degrees Celsius)
  • Optional configurations
    • Vertical bend
    • Steep start
    • Special bends
    • Can be configured on both inside and outside of stairs
      • Inside turn: 90-degree, 180-degree
      • Outside turn: 90-degree
  • Finishes
    • Stainless Steel
    • Light gray

Omega Inclined Platform Lift by Savaria Brochure (English)
